Body
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 530071927 | Kit-Trigger/Lockout | ||
| 2 | 545011903 | Cover-Handle | ||
| 3 | 530016433 | Screw | ||
| 4 | 530023877 | Fitting-Fuel line | ||
| 5 | 530069216 | Kit-Fuel Line (Large) | ||
| 6 | 530069247 | Kit-Fuel Line (Small) | ||
| 7 | 530095649 | Assembly-Fuel Pick Up | ||
| 8 | 545012103 | Handle-Rear | ||
| 9 | 530059475 | Spring-Rear Isolator | ||
| 10 | 530071945 | Kit-Clutch Washer | ||
| 11 | 530057905 | Assembly-Clutch Drum 3/8” | ||
| 12 | 530071945 | Kit-Clutch Washer | ||
| 13 | 530057907 | Assembly-Clutch | ||
| 14 | 530016419 | Washer-Large Clutch | ||
| 15 | 530015906 | Screw | ||
| 16 | 530047192 | Assembly-Fuel Cap w/ret | ||
| 17 | 530016064 | Screw | ||
| 18 | 530015922 | Nut-”U” type speed | ||
| 19 | 545016308 | Assembly-Flywheel | ||
| 20 | 530057911 | Shield-Heat | ||
| 21 | 530015127 | Washer-Flywheel | ||
| 22 | 530016134 | Nut-Flywheel | ||
| 23 | 530021179 | Screw-Shoulder | ||
| 24 | 530059677 | Starter Hub-EPS | ||
| 25 | 530021180 | Spring-EPS | ||
| 26 | 530071966 | Kit- EPS Starter Pulley (Incl. 23,24,25, 32) | ||
| 27 | 545045903 | Housing-Fan | ||
| 28 | 545006108 | Handle-Starter | ||
| 29 | 530069232 | Kit-Rope | ||
| 30 | 530016432 | Screw | ||
| 31 | 576657801 | Spring-Starter | ||
| 32 | 530016080 | Screw | ||
| 33 | 545045701 | Baffle | ||
| 34 | 530058786 | Assembly-Oil Vent | ||
| 35 | 530057236 | Assembly-Oil Cap w/ret. | ||
| 36 | 530057880 | Handguard | ||
| 37 | 530016416 | Spring-Handguard | ||
| 38 | Assembly-Chassis (Incl.4,5,6,7,9,15,16,17,18,20,34,35,37,41,59, ) | |||
| 545011803 | (Gold) | |||
| 545011813 | (Black) | |||
| 39 | 530071893 | Kit-Chainbrake | ||
| 40 | 530016432 | Screw | ||
| 41 | 530016133 | Bolt-Bar | ||
| 42 | 530057910 | Plate-Bar | ||
| 43 | 530016064 | Screw | ||
| 44 | 530059999 | Cover-Gearbox | ||
| 45 | 545040601 | Knob | ||
| 46 | 545027903 | Assembly-Clutch Cover (Incl 43,44,47,48,49,50) | ||
| 47 | 525884203 | Assembly-Bar Adjust wheel | ||
| 48 | 530150000 | Assembly-Bar Adjust | ||
| 49 | 545157401 | Pin-Bar Adjust | ||
| 50 | 545147001 | Clip-Spring | ||
| 51 | 530016439 | Screw | ||
| 52 | 530014381 | Kit-Spike (incl. 51) | ||
| 53 | 952051211 | Chain 16” | ||
| 54 | 530044915 | Bar 16” | ||
| 55 | 530016432 | Screw | ||
| 56 | 530016443 | Screw | ||
| 57 | 530059480 | Assembly-Rear Iso. Spring | ||
| 58 | 530015906 | Screw | ||
| 59 | 530059479 | Assembly-Front Iso. Spring | ||
| 60 | 530057878 | Handle-Front | ||
| 61 | 530016432 | Screw | ||
| 62 | 530071945 | Kit-Clutch Washer (Incl. 10,12) | ||
| 63 | 530057924 | Assembly-Oil Pick Up | ||
| 64 | 530071891 | Kit-Oil Pump (Incl. 65,66,67) | ||
| 65 | 530016064 | Screw | ||
| 66 | 530057931 | Assembly-Oil Pump | ||
| 67 | 530037820 | Gear-Worm |
Engine
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 530016153 | Screw | ||
| 2 | 545115801 | Module-Ignition | ||
| 3 | 530016432 | Screw | ||
| 4 | 530058661 | Strap-Ground | ||
| 5 | 530057943 | Assembly-Wire Harness | ||
| 6 | 530059006 | Reflector-Tape | ||
| 7 | 545045801 | Shield-Cylinder(Incl.1,6) | ||
| 8 | 530016080 | Screw | ||
| 9 | 530057891 | Lever-Ignition Switch | ||
| 10 | 530057908 | Spring-Ignition Switch | ||
| 11 | 530059399 | Knob-Choke | ||
| 12 | 530059001 | Cover-Air Filter | ||
| 13 | 530057869 | Filter-Air | ||
| 14 | 530016425 | Screw | ||
| 15 | 545046901 | Housing-Air Filter w/cable | ||
| 16 | Carburetor | |||
| 545070601 | Zama W26 (Incl. 18) | |||
| 17 | 530069247 | Kit-Fuel Line (Small) | ||
| 18 | 530047721 | Bulb-Purge “snap-in | ||
| 19 | 530071889 | Kit-Carb. Adaptor ( Incl. # 20,38,41) | ||
| 20 | 530071894 | Gasket-cyl. (kit)” | ||
| 21 | 952030150 | Accy-Spark Plug (RCJ-7Y) | ||

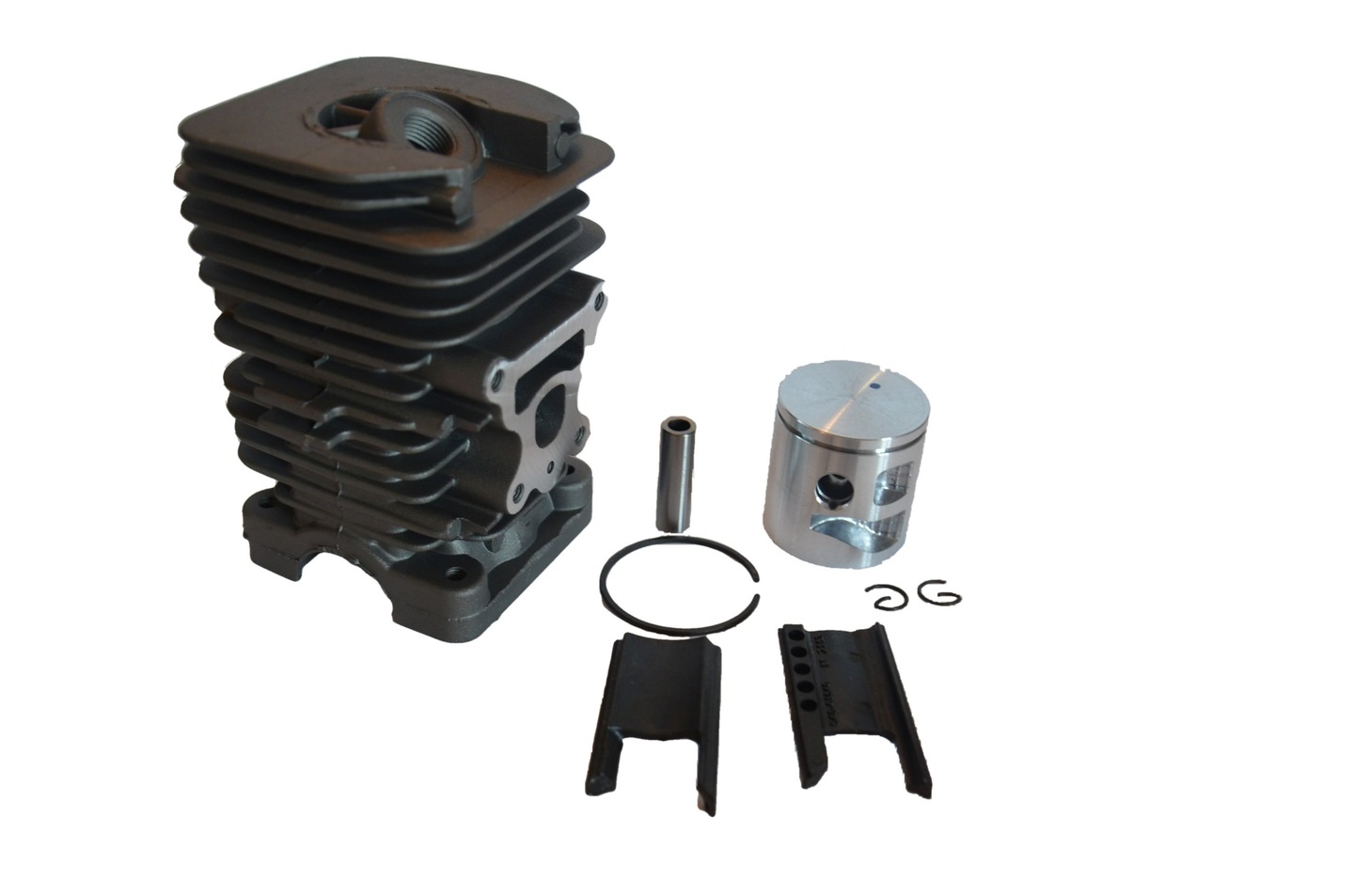

| 22 | 530071884 | Kit-Cylinder (Incl. 29,37) | ||
| 23 | 530058660 | Clip-High Tension Lead | ||
| 24 | 545081801 | Kit-Muffler (Incl. 25,26,27,28) | ||
| 25 | 530057942 | Backplate-Muffler | ||
| 26 | 530071894 | Gasket-Muffler (kit) | ||
| 27 | 545081701 | Kit-Spark Arrestor | ||
| 28 | 530016338 | Bolt-Muffler | ||
| 29 | 545015301 | Insert-Left (black) Cyl. | ||
| 30 | 545112901 | Assembly-Crankshaft/Rod | ||
| 31 | 530016417 | Bolt | ||
| 32 | 530057941 | Cap-Crankcase | ||
| 33 | 530056363 | Assembly-Bearing/Seal | ||
| 34 | 530071883 | Kit-Piston (Incl. 35,36) | ||
| 35 | 530015697 | Retainer-Piston Pin | ||
| 36 | 530038729 | Ring-Piston | ||
| 37 | 545015401 | Insert-Right (gray)Cyl. | ||
| 38 | 530071894 | Seal-Adaptor (kit) | ||
| 39 | 530016426 | Screw | ||
| 40 | 530071894 | Gasket-Carb. (kit) | ||
| 41 | 530057926 | Tube-Intake | ||
| 42 | 530016101 | Nut-Carb | ||
| 43 | 530071894 | Kit-Gasket (Incl . 20,26,38,40) | ||
| 44 | 530031135 | Scrench | ||
| 115292226 | Euro 1 | Not Shown | ||
| 115292326 | Euro 2 | Not Shown | ||
| 115292426 | Euro 3 | Not Shown | ||
| 115292526 | Euro 4 | Not Shown | ||
| 115292626 | Euro 5 | Not Shown | ||
| 115292856 | Russia | Not Shown | ||
| 545083601 | Decal-Warning | Not Shown | ||
| 545083604 | Decal-Warning CE | Not Shown | ||
| 545091601 | Case-Carrying (body) | Not Shown | ||
| 530164048 | Case-Carrying (r & l) | Not Shown | ||
| 530164050 | Case-Carrying (latch) | Not Shown | ||
| 545005401 | Case-Carrying (scab.) | Not Shown,New Part Number For This Ipl |
With the McCulloch Mac 842 McCulloch have designed a petrol chainsaw that is highly efficient and can face up to the most of challenging tasks. Inside the body is the McCulloch advanced engine system that works by giving off lower emissions, has excellent fuel efficiency and increased power output levels. As that is becoming standard with McCulloch chainsaws the Mac 842 has an electronic ignition system and a fuel primer. This makes it easy to start the chainsaw. But to make the Mac 842 even easier to start there is the additional reduced pulling force in the starter handle. Ergonomically this chainsaw has the anti vibration system, well placed handles and a soft grip on the rear handle. Maintaining this chainsaw is really easy and any adjustments you need to make on the tension of the chain are performed with a knob. This makes needing tools to set the tension of the chain a thing of the past. For safety there is the dual mounted chain brake which has inertia automatically activation. This is one of the most powerful chainsaws that McCulloch has and if felling trees is your requirement, then look no further.
Features
2 stroke engine
2.15 hp
Automatic oil pump
EcoBoost
CCS system
Soft Start
Fuel pump
Stop/choke switch combined
Tool less Chain Tensioner
Soft Grip
Mac 842 Chainsaw Sharpener
Double Action Chainbrake
Mac 842 Chainsaw Review
Anti vibration
Mac 842 Chainsaw Parts
Bar length of 40 cm
Mac 842 Chainsaw Blade
Weight 5.5 kg
